Specially testing equipment & Tools
 Baur oil tester DPA 100 C |
Fully automatic measurement of the dielectric strength of liquid insulation up to 100 KVExcellent design for high efficiency and usabilityExtraordinarily powerful for continuous use in the laboratoryClear and reliable results through the latest measurement technologyRepeatable breakdown measurement in mineral oil, silicone and ester fluids |
 Doble M4100
|
The Doble M4100 unit is the foundation of the M4000 Diagnostic test System for Condition Assessment of Power Apparatus. The M4100 Instrument evaluates the integrity of high-voltage substation apparatus by measuring the power factor/tangent delta and a number of other values. It also measures capacitance, to evaluate physical changes to the apparatus. The M4100 was engineered from the ground up to overcome the common problems that plague other test instrument. The results is nothing less than an entirely new approach to testing. |
 Winding Ohmmeter RMO100M
|
Winding Ohmmeters RMO-M series are designed for winding resistance measurement of electrical motors and generator. RMO-M instruments are based on state of the art technology, using the most advanced switch mode technique available today. RMO-M generator true DC ripple free current with automatically regulated measurement and discharge circuit. The RMO100M has a very high ability to cancel electrostatic and electromagnetic interference that exist in HV electric fields. |
 Fluke 810 Vibration Tester
|
Fluke 810 helps identify and prioritize mechanical problems. Check out how this hand held vibration tester can help make informed maintenance decisions. |
 Fluke Ti32 Infrared Camera
|
Powerful and Versatile for Advanced Infrared Troubleshooting |

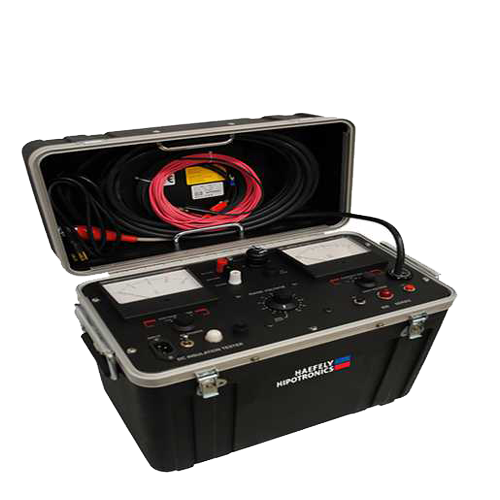

 800 Series: DC HIPOTS
|
The 800PL series DC hipot testers are an economical solution to DC field testing of cables, termination, motors, generators and other electrical apparatus. This series come in a single unit design that ranger from 15 kV to 80 kV and two unit design that ranges from 120 kV to 170 kV. Accurate voltage and current measurement are assured via voltage readings that are taken directly at the output of the high voltage transformer and current measurement are taken in the return leg. |
 Leica NA700 Series Automatic Levels
|
The most precise. 30x telescopic magnification. Meets the highest standards in construction, engineering and topographic surveys |
 Megger (Programma)
EGIL Circuit Breaker timer
|
Circuit Breaker Analyzer (One Breaker Per Phase) Suitable for testing timing and travel on all circuit breakers with single interrupter per phase |

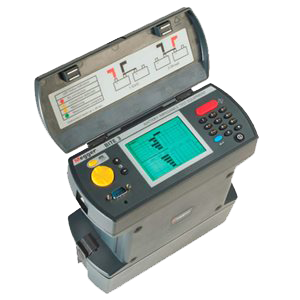

 BITE3
Battery Impedance Tester
|
The Megger BITE3 Battery Impedance Test Equipment determines the health of lead-acid cells up to 2000 Ah by taking measurements of the most important battery parameters. The BITE3 measure cell impedance, an internal ohmic test, cell voltage, intercell connection resistance and ripple current. and for the first time in a battery instrument, the BITE3 measures float current and the harmonic content of the ripple current. There is even a built-in spectrum analyzer to show the harmonic content of the ripple current. |
 Megger MIT520/2
5 kV diagnostic insulation resistance tester
|
Offering CAT IV, the MIT525 is compact, light 5 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. Enclosed in a tough case it is both smaller and lighter than its predecessor making is even easier to carry and store. |

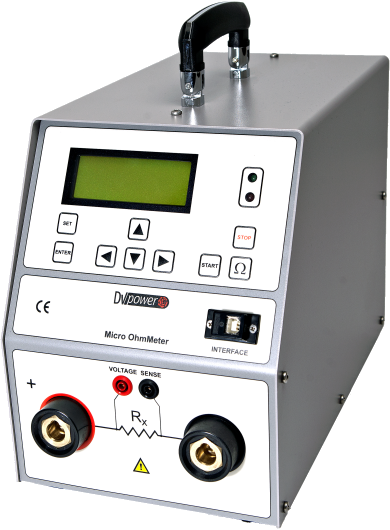

 MOM200A
200A Micro-ohmmeter
|
The MOM200A is designed to check and measure contact resistance in high voltage circuit breaker, disconnecting switches (isolators) and busbar joints. This unit is an excellent choice when 200 amperes or less are needed for measurement. |
 SVERKER650
Single Phase Relay Tester
|
- Designed for rugged field use
- 0 to 100 Amp output current
- Suitable for testing many different types of relays such as power, voltage and current
- Easy to operate
|
 Programma Sverker 760
Relay Test Unit
|
The Sverker 760 Relay Test unit is the engineer's toolbox. The Sverker 760 features many functions that make relay testing more efficient, for example, its powerful measurement section can display (in addition to time, voltage and current) Z, R, X, S, P, Q, phase and angle cos. The Voltmeter can also be used as a second ammeter. You can also test directional protective equipment efficiently by means of the built-in variable voltage source. The Sverker 760 also has a continuous phase shift function as well. The Sverker 760 is designed to comply with EU Standards and other personal and operational Safety Standards and it is also equipped with a serial port for communication with personal computer and PC software. |
 Megger (Programma) TM 1600
Circuit Breaker Analyser
|
The Megger (Programma) TM1600 Circuit Breaker Analyses is used to measure a circuit breaker's timing cycle. The timing channels record closings and openings of main contact, resistor contacts and auxiliary contacts. The TM1600 Circuit Breaker Analyse supports communication with the CABA Win Breaker Analysis Software. Fully equipped. |
 TORKEL 840/860
Battery load tester
|
Ideal for use on equipment in high-voltage substations & industrial environments Suitable for battery systems ranging form 12 to 250 V
Batteries can be tested in service, results can be saved to PC with Torkel Win software
|
 TTR300 Series Three-Phase
Transformer Turns Ratio tester
|
- Stand-alone or remote-control operation
- Accurately measures ratio, phase deviation and exciting current
- Field upgradeable without compromise to calibration
- Built-in capability for storing and downloading test results in an XML format, via RS-232, Ethernet or USB ports (depending on model)
- Highest ratio measurement (45,000:1); highest accuracy (0,1%)
|
 VIDAR Vacuum Interrupter Tester
|
Tests the integrity of vacuum interrupters quickly, safely and easily
- User defined voltage selection
- Extensive voltage range
- Easy to operation. Follows ANSI/IEEE standardized DC test methods.
- Lightweight and and portable.
|
 OMICRON CMC 256 plus
High precision relay test set and universal calibrator
|
Key features
- Protection test set and universal calibrator in one device
- Testing of all relay generations- electromechanical, static, numerical, IEC 61850
- Highly accurate test signals. For meter testing: The sources are the reference- no additional reference meters are required
- Integrated network for testing IEC 61850 IEDs
- 10-channel analog measurement and transient recording functionality (option)
|
|

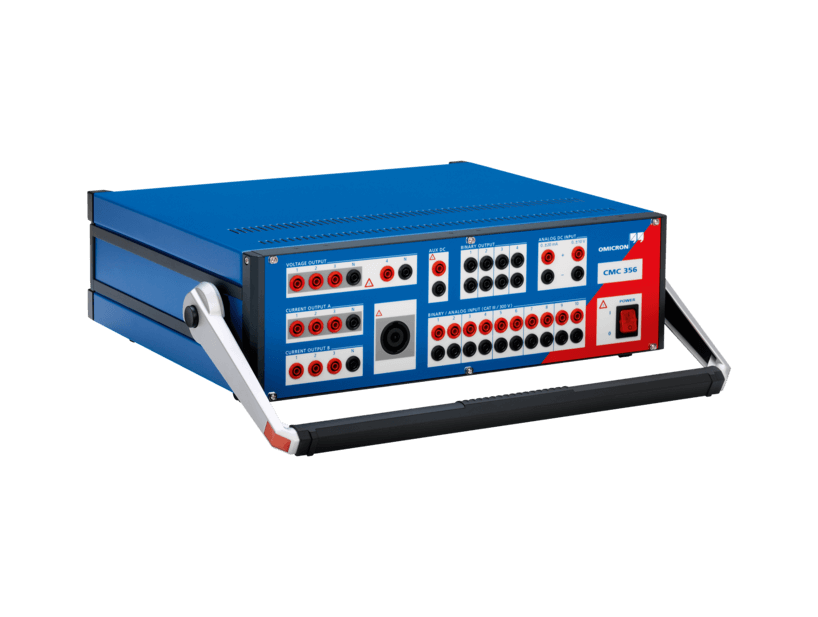

OMICRON CMC 356 Universal relay test set and commissioning tool |
Key features
- Powerful current sources for testing even high-burden electromechanical relays
- High current amplitudes for 5 A relay testing
- High accuracy and versatility for testing static and numerical relays of all types
- Integrated network for testing IEC 61850 IEDs
- 10-channel analog measurement and transient recording functionality (option)
|
 OMICRON CPC 100
Universal testing device for electrical diagnostics
|
Key featurea
- Up to 800 A or 2000 V with up to 5 kVA over a frequency range of 15 Hz - 400 Hz or 400 A DC
- Excellent interference suppression facilitates measurement of small signals
- Easy to transport (just 29 kg) - Ideal for on-site testing
- Testing templates, automatically generated testing procedures and test reports
- Up to 2000 A or 12 kV though use of current or voltage amplifiers
|
 PONOVO L336i
portable protection relay tester
|
L336i is a portable protable protection relay tester. It is a great innovative breakthrough of PONOVO for its incomparable lightest solution (8.8 kg) with 6 currents and 4 voltages. This Laptop size relay test set can test all types of modern multi-function relays. It is the first choice for relay test engineers who travel a lot. |

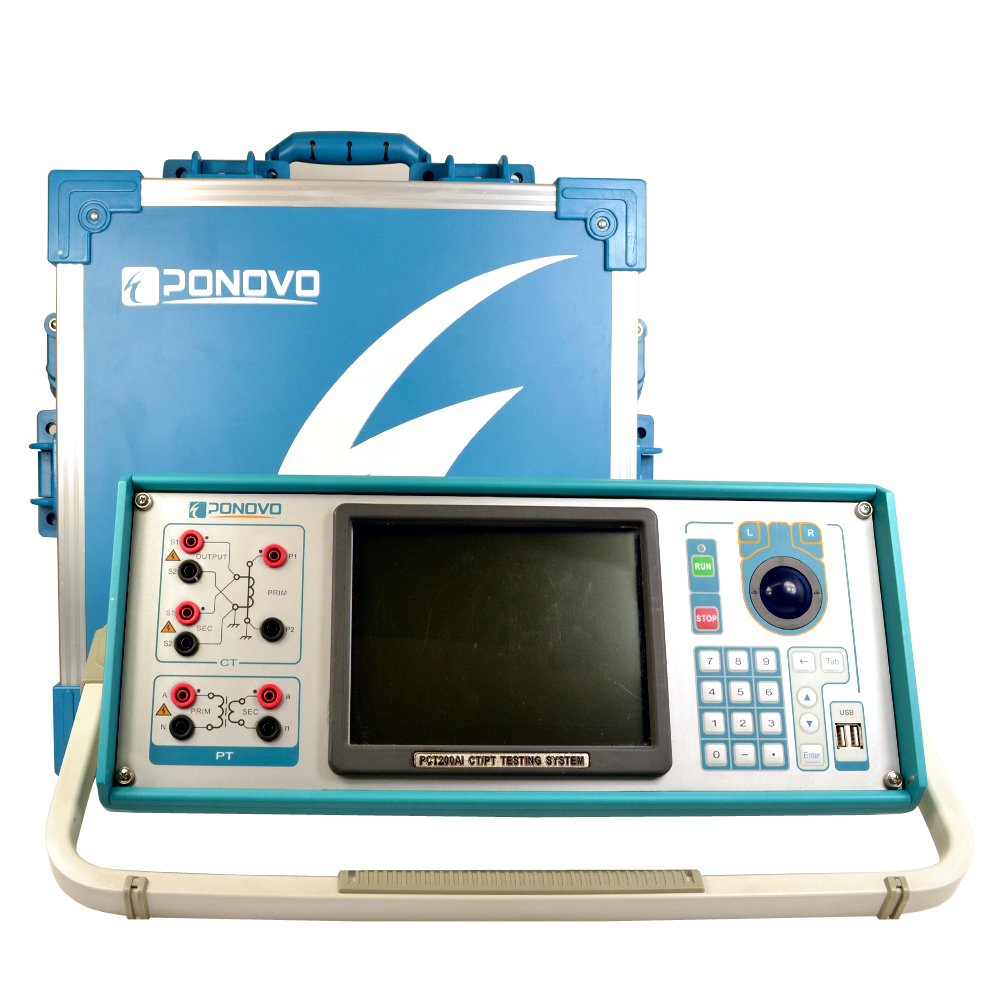

 PONOVO PCT 200i
Current transformer characteristic test
|
PCT 200i is specially designed for current transformer characteristic test. Compared with PCT 200Li, PCT 200i owns more test items and higher technical parameter. This CT analyzer can finish the measurement class CT and TYP class CT. The additional functions include ratio and angle differential tests (the measurement points in the GB standard), FS and inductance, steady-state parameter, peak error and transient parameters, etc. |
 PONOVO T200A
Relay test kit based on PWM technology
|
Feature
- High power current source for high burden relay test
- Capable of testing differential relay with two independent current sources
- Capable of testing directional relay with adjustable phase angle
- In-built Ammeter and Voltmeter
- 120s output time at 250A
- Rotating
|
 Vanguard-instruments CVT-765
Capacitor Voltage Transformer Tester
|
The CVT-765 determines the transformer turn-ratio using the IEEE C57.12.90 measuring method. It uses a 7500 Vac excitation voltage source to accurately measure the turn-ratio of Capacitor Voltage.
Transformers with a rating of up to 765 KV. The transformer turn-ratio is determined by precisely measuring the voltages across the unloaded transformer winding.
|
 Vanguard-instrument WRM-40
Winding Resistance Ohmmeter
|
Features
- Auto current Ranging from 10 MA to 40 Amps
- Digital Resistance Reading from 1 micro-ohm to 500 ohms
- Auto discharge circuit for operator safety
- Built-in 2.5" Thermal Printer, computer interface
- Stores 48 record of 63 readings
- Weighs less than 30 lbs
|

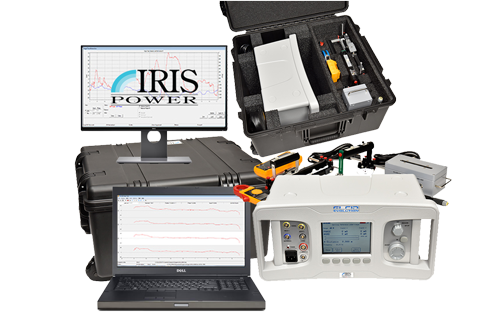

 IRIS POWER EL CID EVOLUTION
The next generation in EL CID technology for detecting stator core problems
|
EL CID TESTING VS. RING FLUX TESTING
The only alternative to the Iris Power EL CID Evolution test is the Ring Flux (full flux) test. The Ring Flux test requires large power supplies, considerable manpower, and expensive infrared viewing cameras. The EL CID test has the following advantages compared to the Ring Flux test:
- EL CID test provides rapid testing of the machine, often less than one work shift for turbo-generator and motor. The Ring Flux test typically takes 3 work shifts.
- Only one technician is needed to perform the test.
- Typical labor is reduced form 144 to 360 man-hours for a major turbo-generator Ring Flux test* to just 8 to 10 man-hours for EL CID test.
- Rapid setup to retest after any repair ensures quick turnaround
- Minimize intrusive repairs by instantly verifying the result.
- Safe for core and operator, unlike Ring Flux test which is potentially damaging to the uncooled core.
|
|

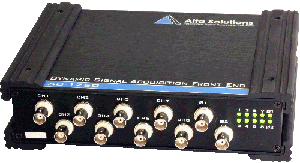

Alta Solutions AS-125FE Dynamic Signal Acquisition Front-Endfor Rotating Machinery Monitoring and Analysis |
- Brings powerful acquisition capability close to machinery
- Industrial design for field mounting
- Reduced analog wiring
- Flexible channel and phase marker configurations
- Optional Fiber optic connectivity maintains signal integrity
- Real-time vibration analysis and transient data capture
- 24-bit simultaneously sampling inputs
|
